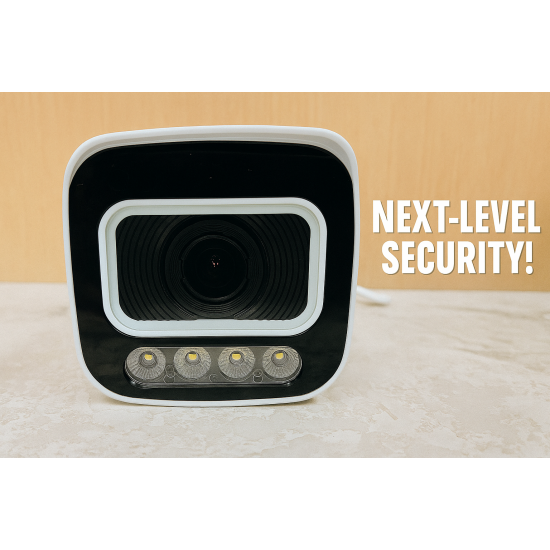

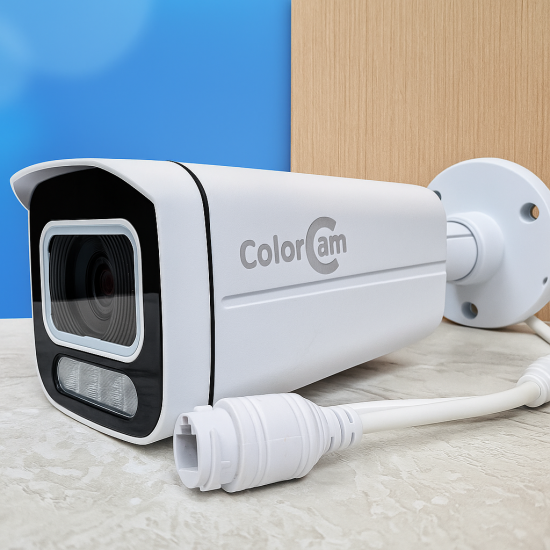

ColorCam CC-IPC-BZ55DZML4-CAN-2812

5MP Varifocal Smart IP Bullet Camera

Overview

Experience crystal-clear surveillance with the ColorCam CC-IPC-BZ55DZML4-CAN-2812, powered by the Ingenic Z55D 5MP Smart IP Module.
This advanced AI camera delivers stunning image clarity, smart humanoid detection, and efficient H.265 compression — providing professional-grade security for homes, offices, and industrial environments.

Key Features

???? High-Definition Clarity

Enjoy ultra-sharp video with 5MP (2592×1944) resolution for detailed and accurate image capture.

???? Smart Human Detection

Built-in AI algorithm detects human motion with ≥99% accuracy, recognizing full body, head, and shoulders — reducing false alarms from animals or environmental movement.

???? Smart Video Compression

Advanced H.265 / Smart H.265 encoding ensures smooth streaming while saving storage and bandwidth.

???? 3D DNR & Digital WDR

Captures vivid, low-noise video even in challenging light conditions.

???? Dual Light Support

Equipped with IR and warm LEDs for true color night vision and smart switching between color and black-and-white modes.

⚡ Low Power, High Performance

Efficient power usage without compromising performance — ideal for continuous monitoring.

???? Secure Network Transmission

Supports HTTPS & AES encryption for safe, tamper-proof video data.

???? ONVIF & GB28181 Compatible

Seamlessly integrates with all major NVRs and security systems.

???? Smart App Connectivity

View live feeds remotely via mobile apps; supports RTSP, DDNS, NTP, and SMTP for alerts and playback.

Technical Specifications

Camera

• Model: Z55D

• Chipset: T31X

• Sensor: 1/2.7" 5MP Low Illumination CMOS

• Lens: 2.8–12mm Motorized Varifocal

• Day/Night: ICR switch (Auto/Color/B&W/CDS)

• D-WDR: Off / Low / Middle / High

• IR/Warm Light: Auto/Manual brightness (0–100)

• 3D DNR: Off / Low / Middle / High

• Defog: Off / Low / Middle / High

• Mirror: Off / H / V / 180° flip

• Image Settings: Brightness, Contrast, Sharpness, Saturation, Chroma

Humanoid Detection

• Detection Quantity: ≤5 Persons

• Accuracy: ≥99%

• Response Time: ≤1s

• Detection Speed: 5fps

• Detection Type: Full/Partial Body, Head, Shoulder

• Detection Area: Selectable (Default Full Screen)

• Error Rate: ≤2%

• Trigger: Video-based Detection

Video & Audio

• Compression: Smart H.265 / H.265 / H.264

• Max Resolution: 5MP (2592×1944)

• Frame Rate: 5MP@20fps / 4MP@25fps / 3MP@25fps

• Bitrate: 160Kbps – 4000Kbps

• Audio Codec: G.711u / G.711A (64Kbps)

• Two-Way Audio: Supported

Network

• Protocols: TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPoE, UPNP, SMTP

• Compatibility: ONVIF / GB28181 (optional)

• Security: HTTPS, AES, RTSP Verification

• Port: RJ45 10M/100M Adaptive

• Alarms: Motion Detection, IP Conflict, Illegal Access, Video Loss

• Privacy Mask: Up to 4 Custom Areas

Applications

• ???? Home & Office Surveillance

• ???? Retail & Warehouse Monitoring

• ????️ Smart City Projects

• ???? Industrial & Factory Security

Why Choose the Z55D Series

The Z55D 5MP IP Camera merges AI intelligence, ultra-HD imaging, and enterprise-grade data security, ensuring reliable protection in every environment.
Whether it’s day or night, indoors or outdoors — ColorCam keeps every detail visible and every moment secure.
